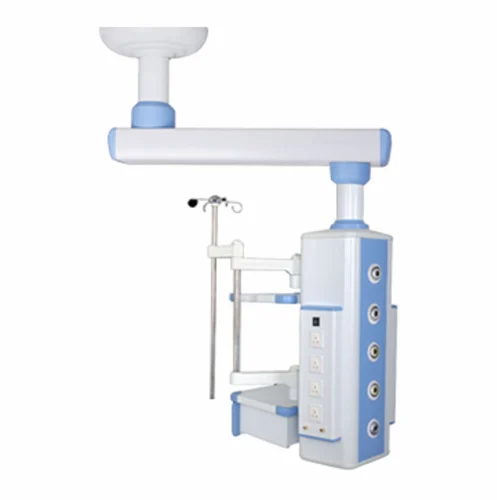

OT Pendant (Motorised)

The Activity range of Horizontal arm radius) 1000mm, horizontal arm and functional box can be simultaneously rotated, each horizontal, rotation angle 340 Degree.
Functional box vertical lifting stroke 250~600mm. Motor power 100W.
The rotary joint has oxygen ballon expandable isolation brakes, just hold down the brake button n the device to easily rotate, release the button to secure the device no drift.
The gas terminal interface standard configuration: oxygen 2 Pcs, suction 2 Pcs.
i.) Different Colors and shapes.
ii.) More than 20,000 times mating cycles.
iii.) Using the secondary seal, with three states (on, off, pull),
can carry air services.
Instrument platform: two layers (height adjustable); rounded bumper design, each platform can load 20 kg.
Weight loading: 150 kg.
Power Supply: AC220V, 50Hz, AC 110V, 60Hz.
Electrical Outlet: 8 Pcs (220V / 10A).
Potential ground terminal: 2 Pcs.
The Network Interface: RJ45 1 Pc.
Drawer: 1 Pc.
Syringe Pump rack: 1 Pc
Infusion Pump rack: 1 Pc.
The main material: high-strength aluminum alloy.
The surface treatment using imported high-voltage electrostatic poer spray.
Celling-mounted, high stability.
